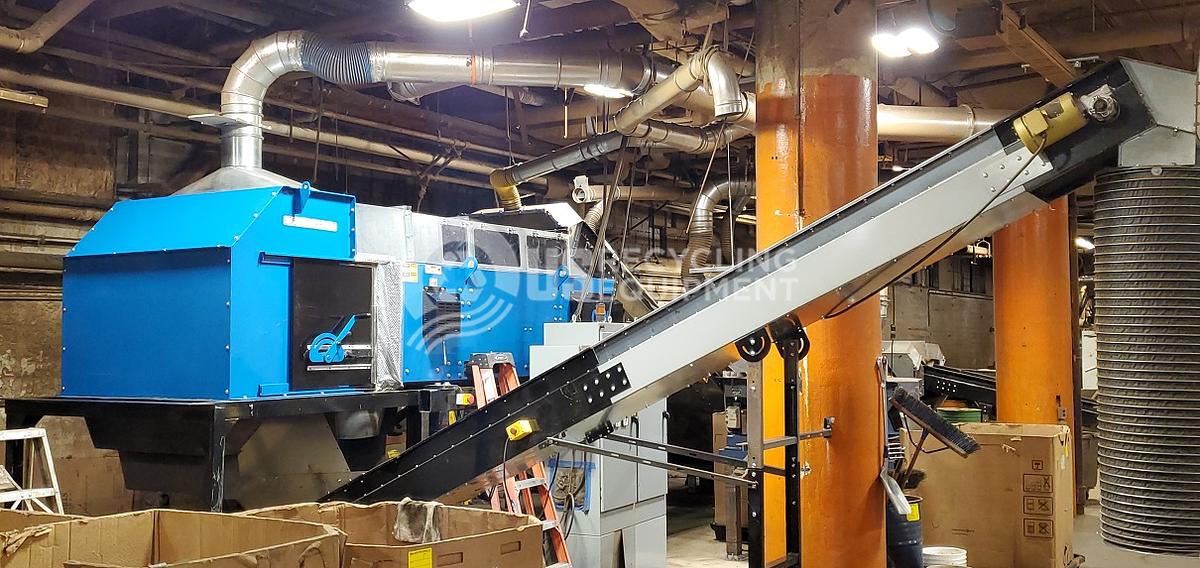

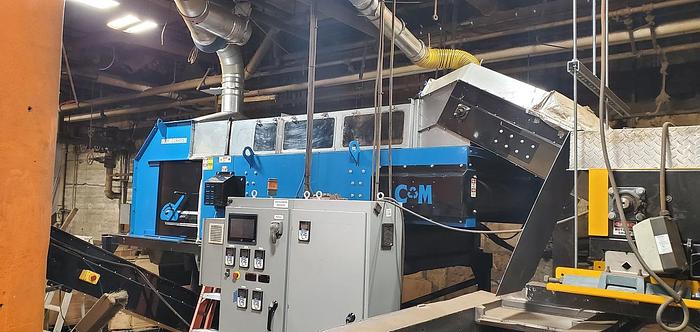

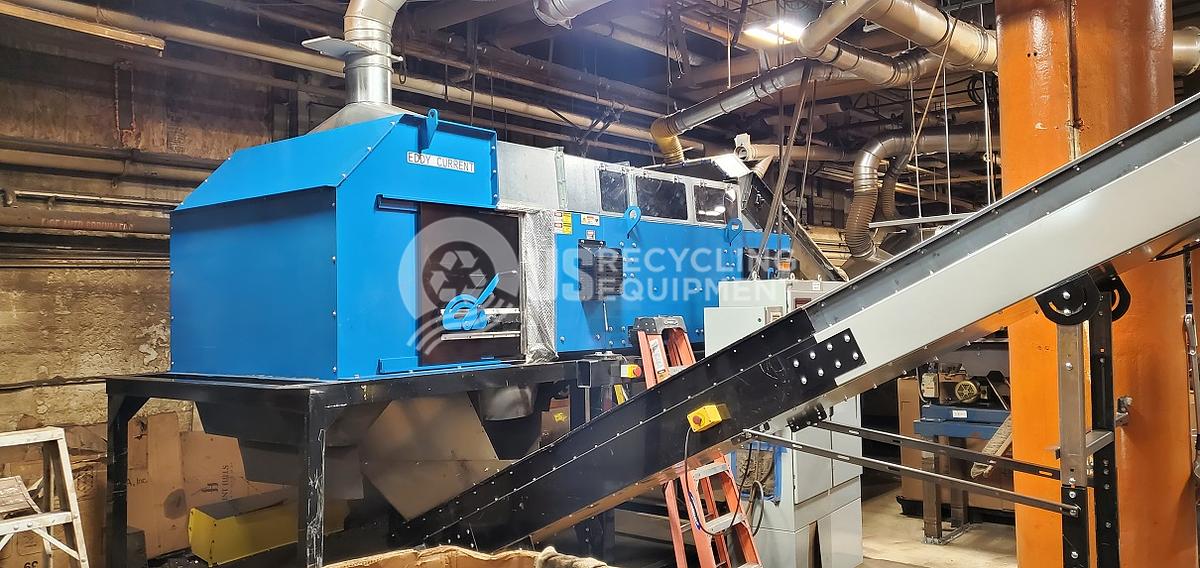

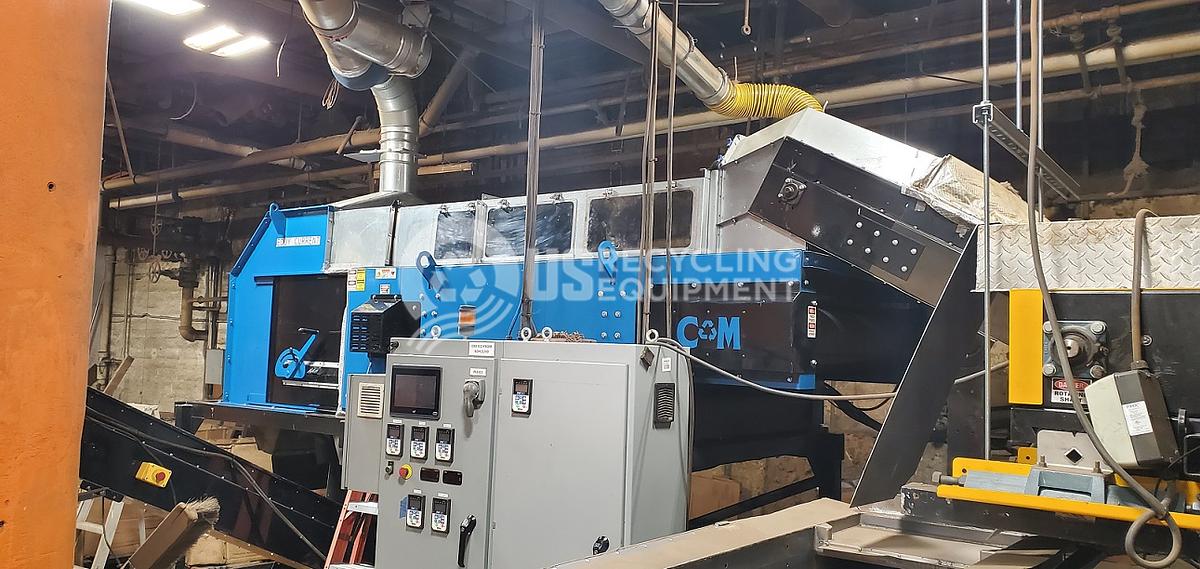

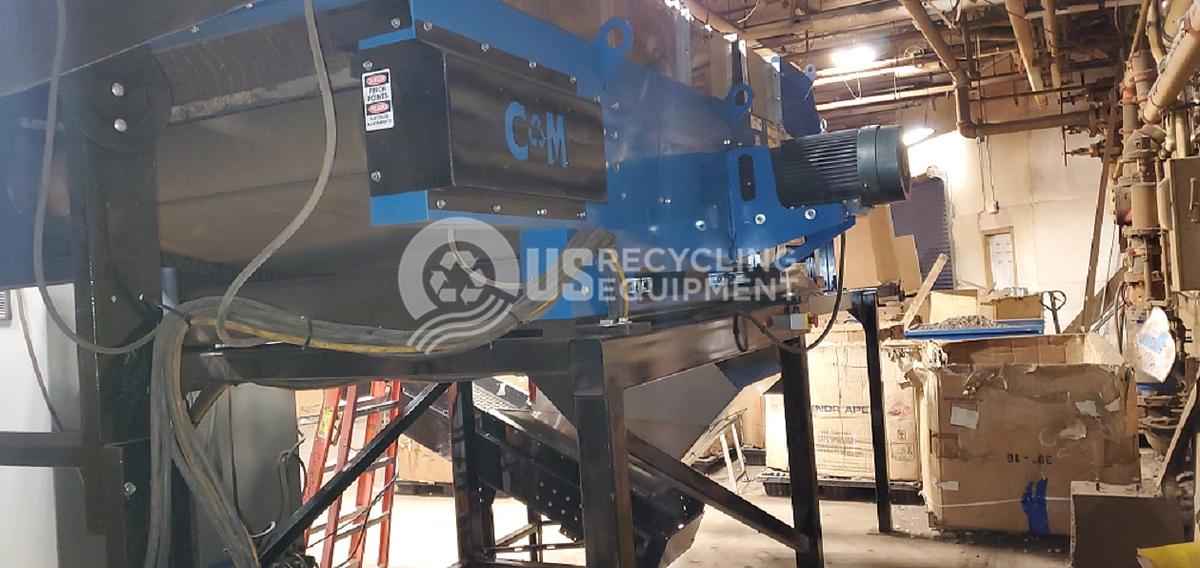

2019 Javelin ESC481690RA043 Eddy Current

Javelin Eddy Current 48" / 16 Pole

2019 Model

Model ESC481690RA043

-Full Dust Hood with Viewing Ports

- High Polarity Fines Rotor using N52 Magnets

- Rulmeca® internal drive pulley

- Polyurethane belt w/ hidden SS splice

- Belt effective width between corrugated side walls is 48”

- 90” length between front end centerline to rear pulley centerline.

- Frame and guards to be powder coated.

- 10” OD carbon fiber shell

- Single Cut Splitter Box

- Unit will be designed to run at 3000 RPM

- Material size to be sorted: 2” minus
