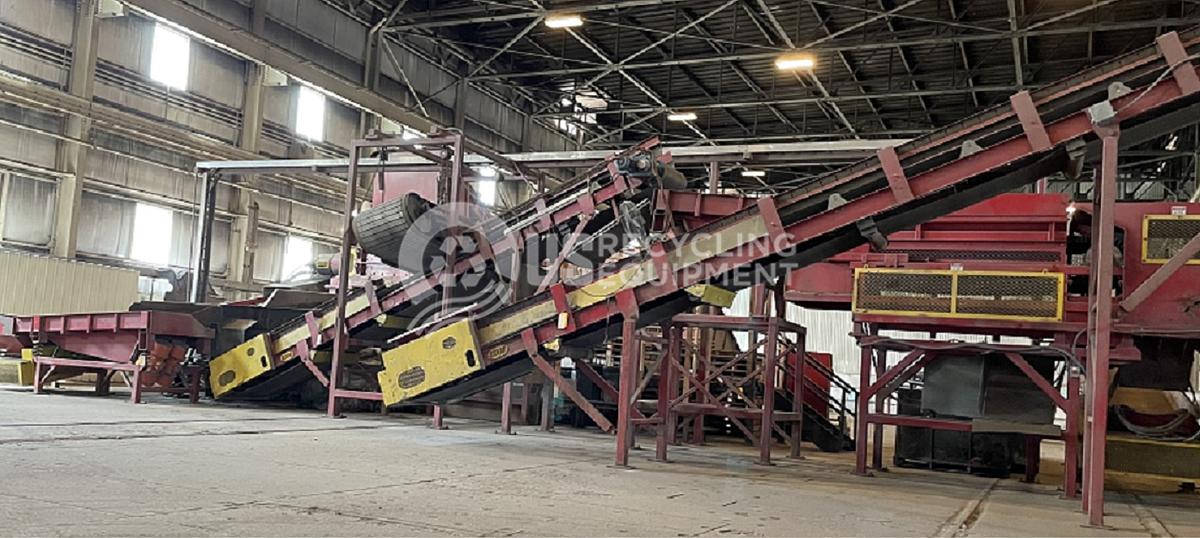

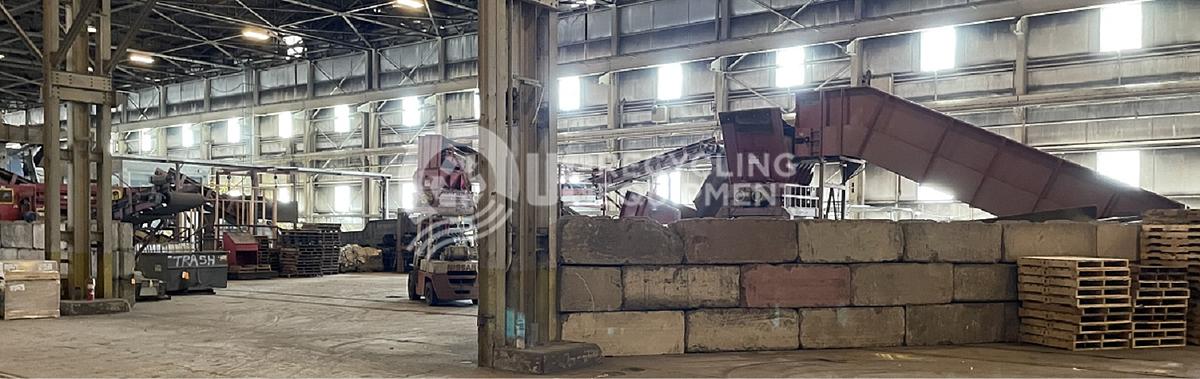

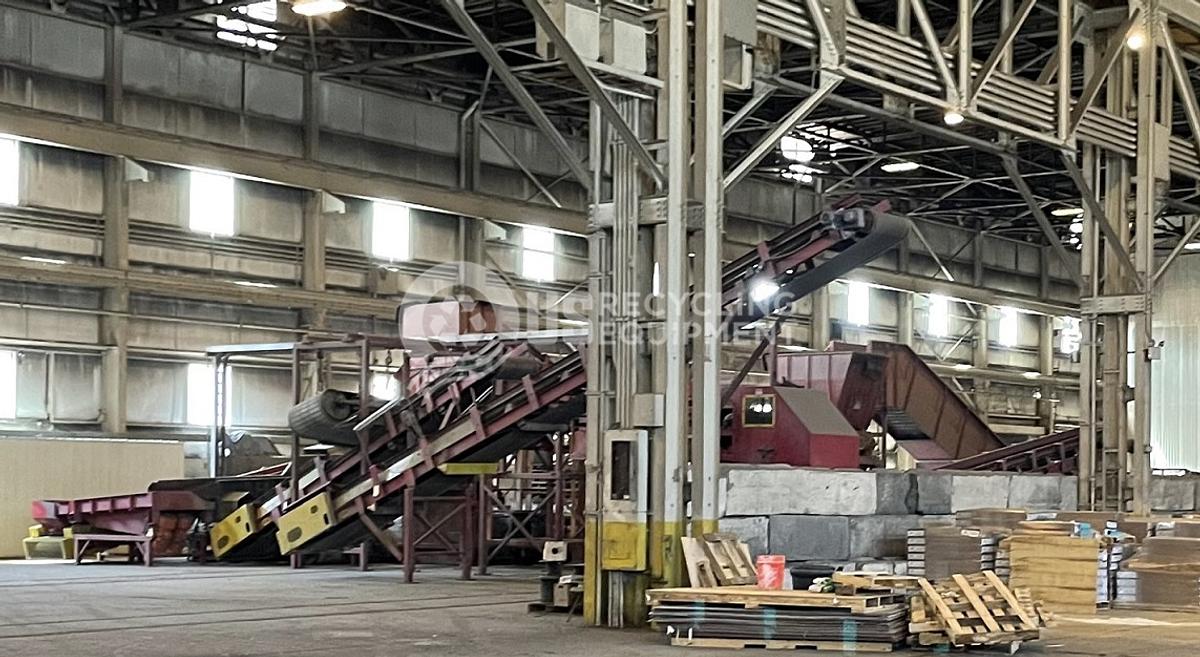

Raptor Large Shredding System

Recent Refurb LARGE Raptor Shredding System

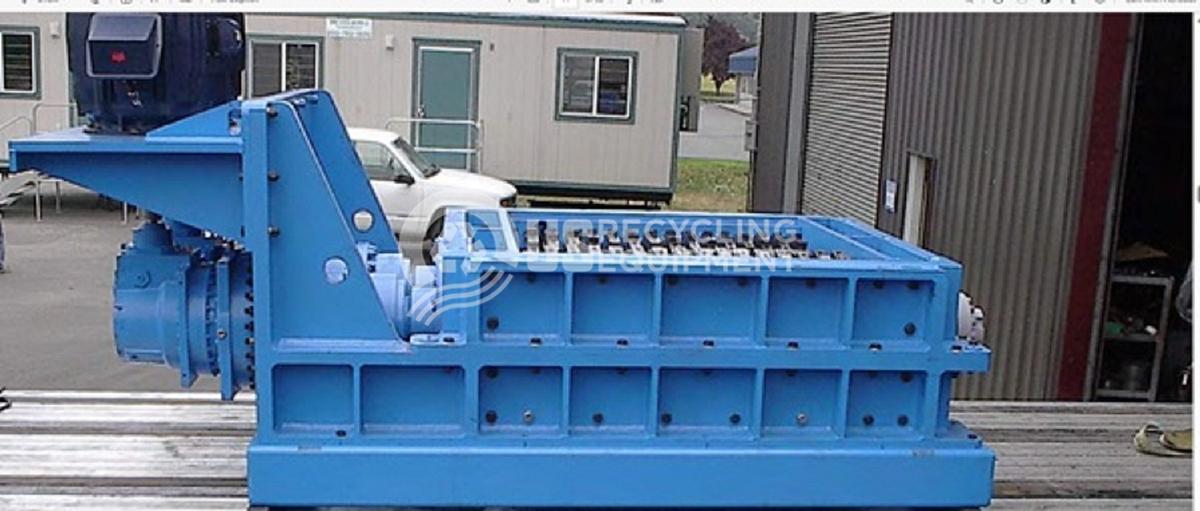

IDM Raptor Model 23 Primary Bale Breaker

Opening 56" x 58"

Cutting Blades 3" Width / 3 Hook Blades

200 HP Closed Loop Hydraulic Drive

48,000 Lbs

Allen Bradley PLC

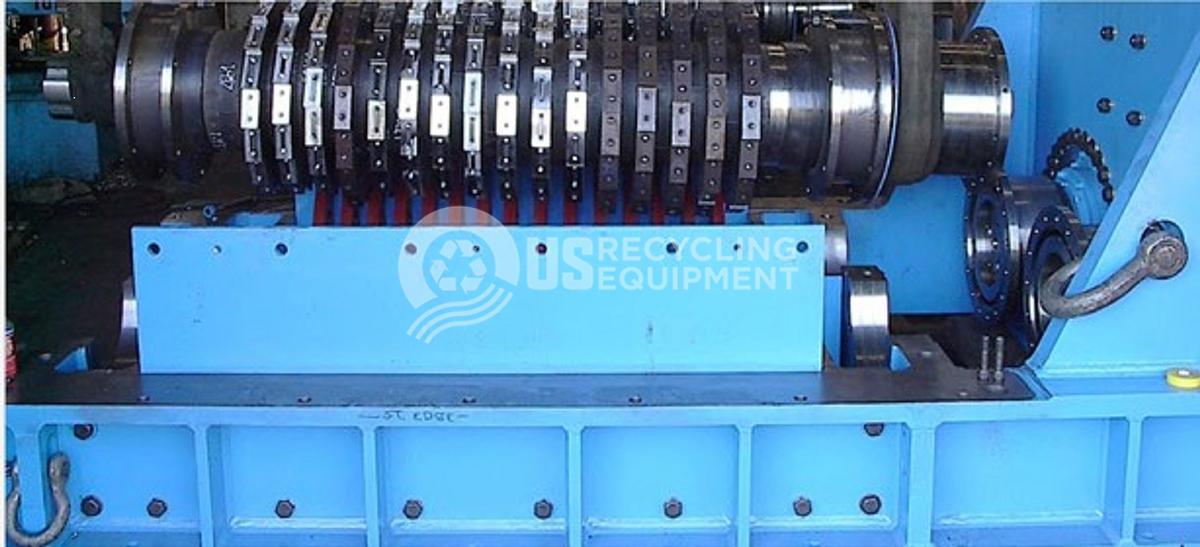

IDM Raptor Model 25 Secondary Shredder

Opening 60" x 64"

Cutting Blades 2.5" Width / 3 Hook Blades

300 HP Closed Loop Hydraulic Drive

61,000 Lbs

Allen Bradley PLC

Cleated / Infeed Conveyor to Bale Breaker Shredder

48"W x 29'L

10 HP

Discharge Conveyor from Primary Shredder

48"W x 12'L

7.5 HP

Transition Conveyor with Magnetic Head Pulley

48"W x 33'L

5 HP

48" Crossbelt Magnet

5HP

Action Vibratory Screener

5' x 24'

Vibratory Return Conveyor

5 HP

4' x 16'

Oversize Return Conveyor

Acceptable Particle Discharge Conveyor

Final Accepts Conveyor

Contaminant Conveyor

36" Crossbelt Magnet

Eddy Current Separator

EDDC-1 GMS Model Reel 14-36-10

Allen Bradley PLC / Panel View

12 E-Stops

Video Available

System Only Ran 6 Months
