2014 Herbold Plastics Recycling Complete Wash Line

Herbold Wash Line

4,500 LB/HR Herbold Wash Line Consisting Of The Following Pieces:

New In 2014, Only 2 Years Of Actual Run Time On System

In-Feed Conveyor

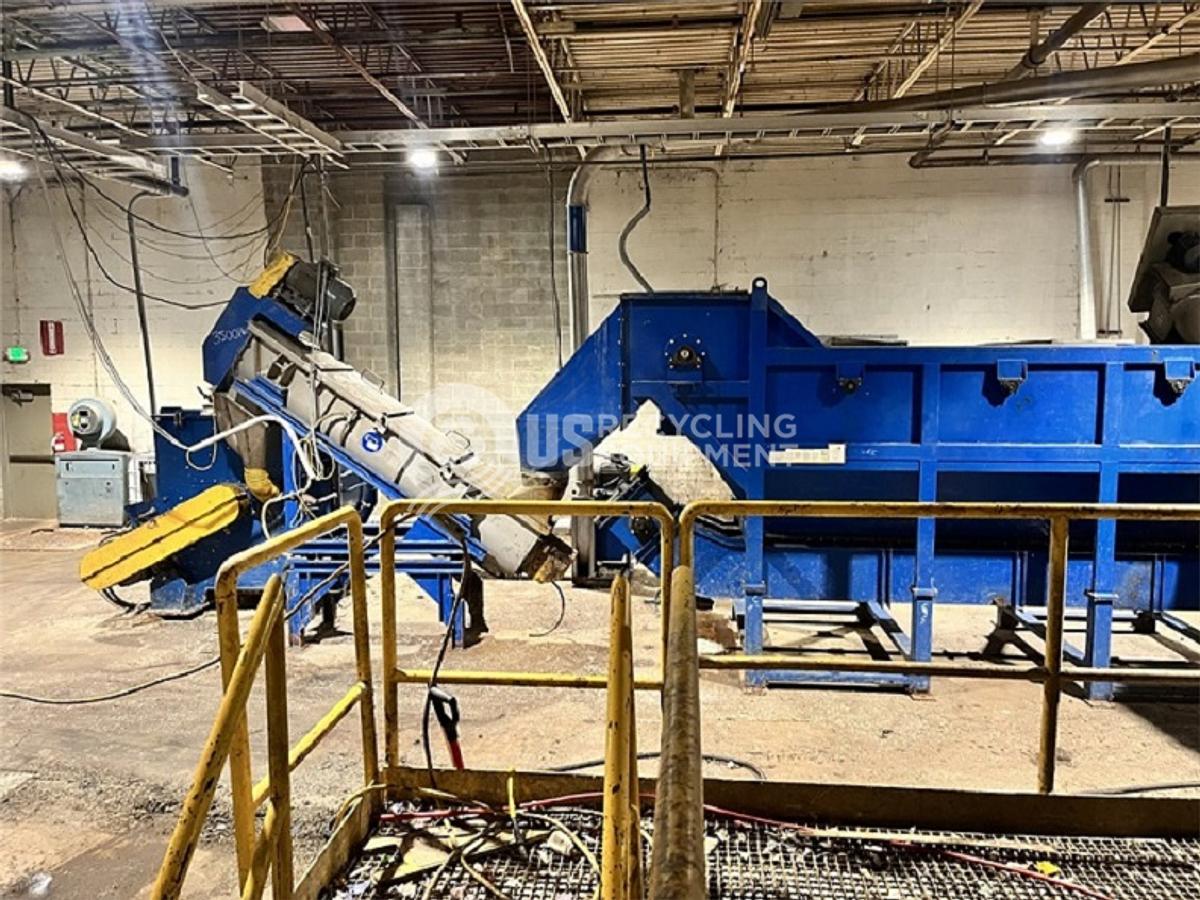

Herbold Pre-Wash Sink/Float Tank, Lighter Than Water Plastic Is Fed To Herbold Granulator, Heavier Than Water Plastics And Foreign Materials Are Discharged Through Screw Auger

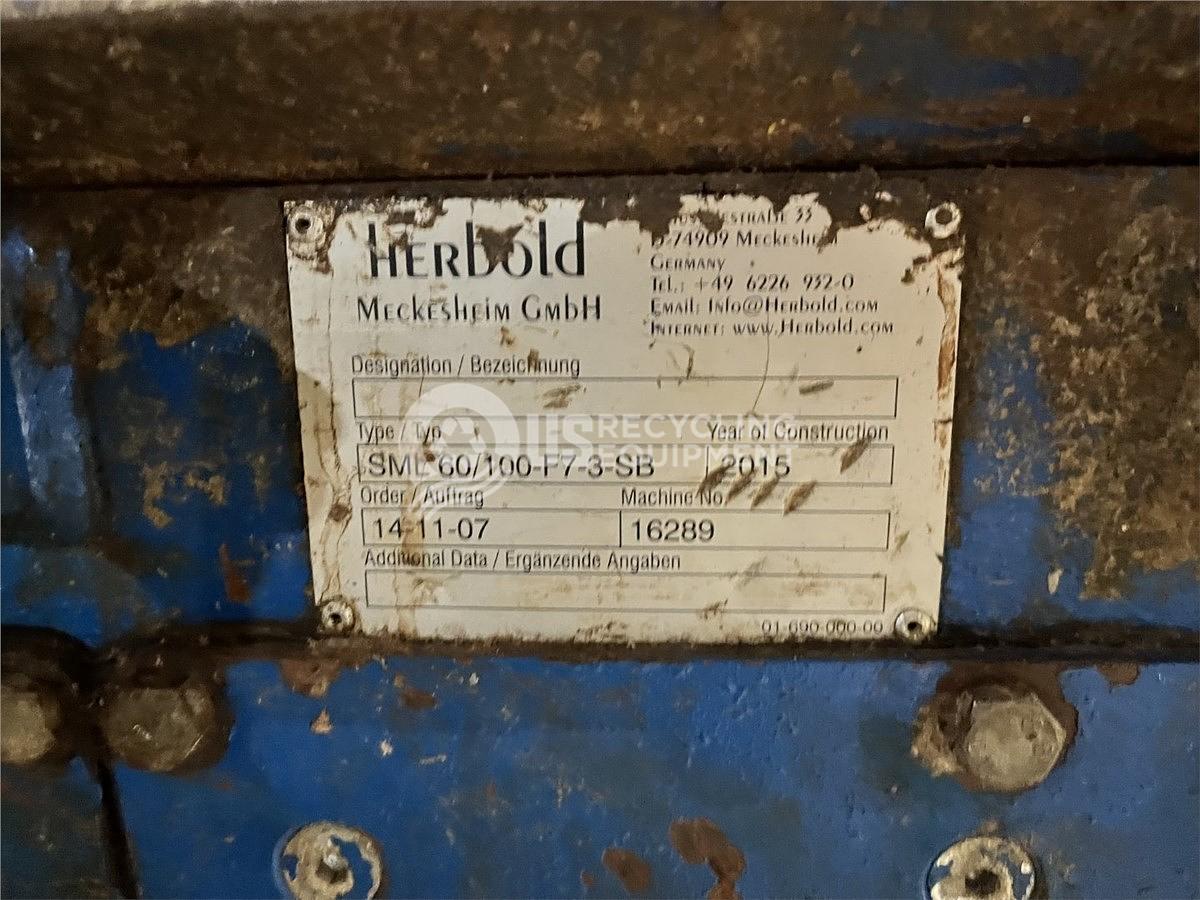

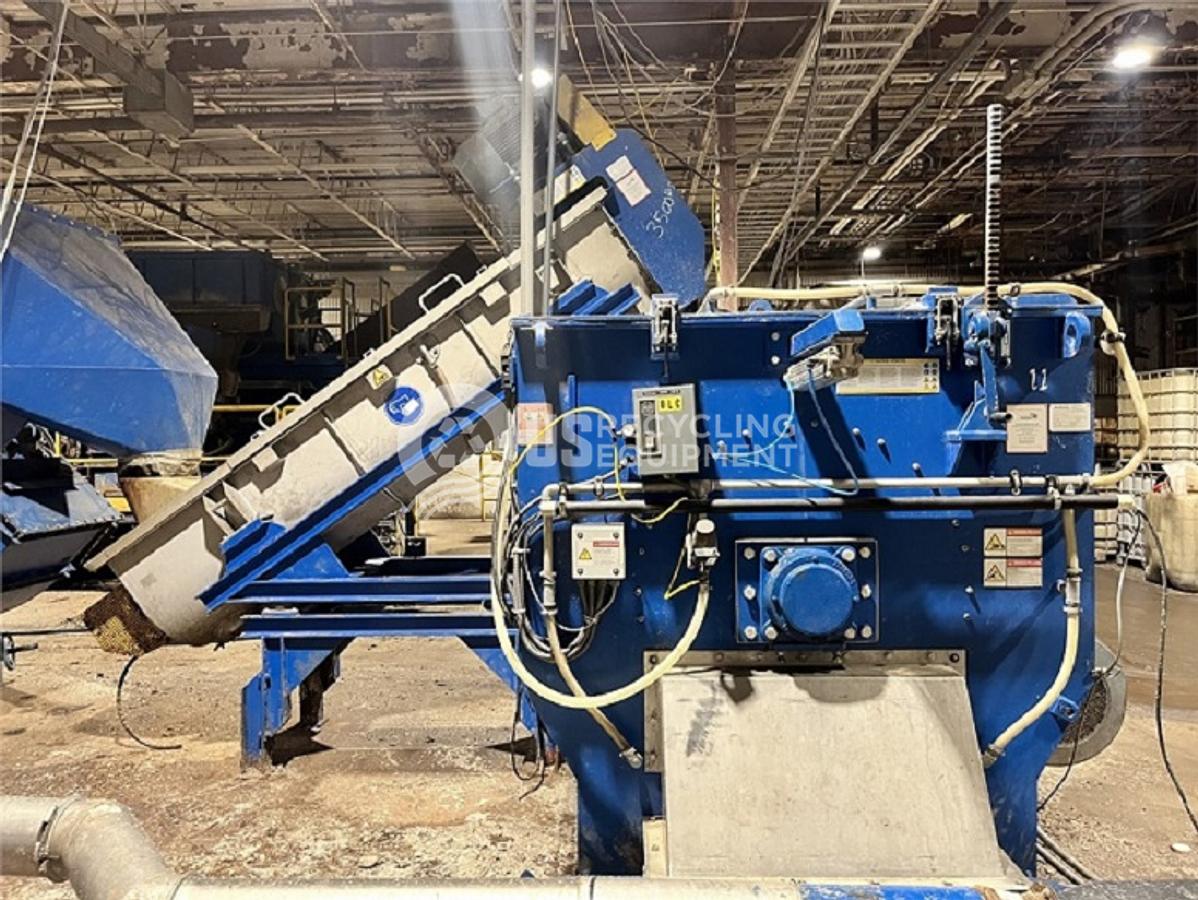

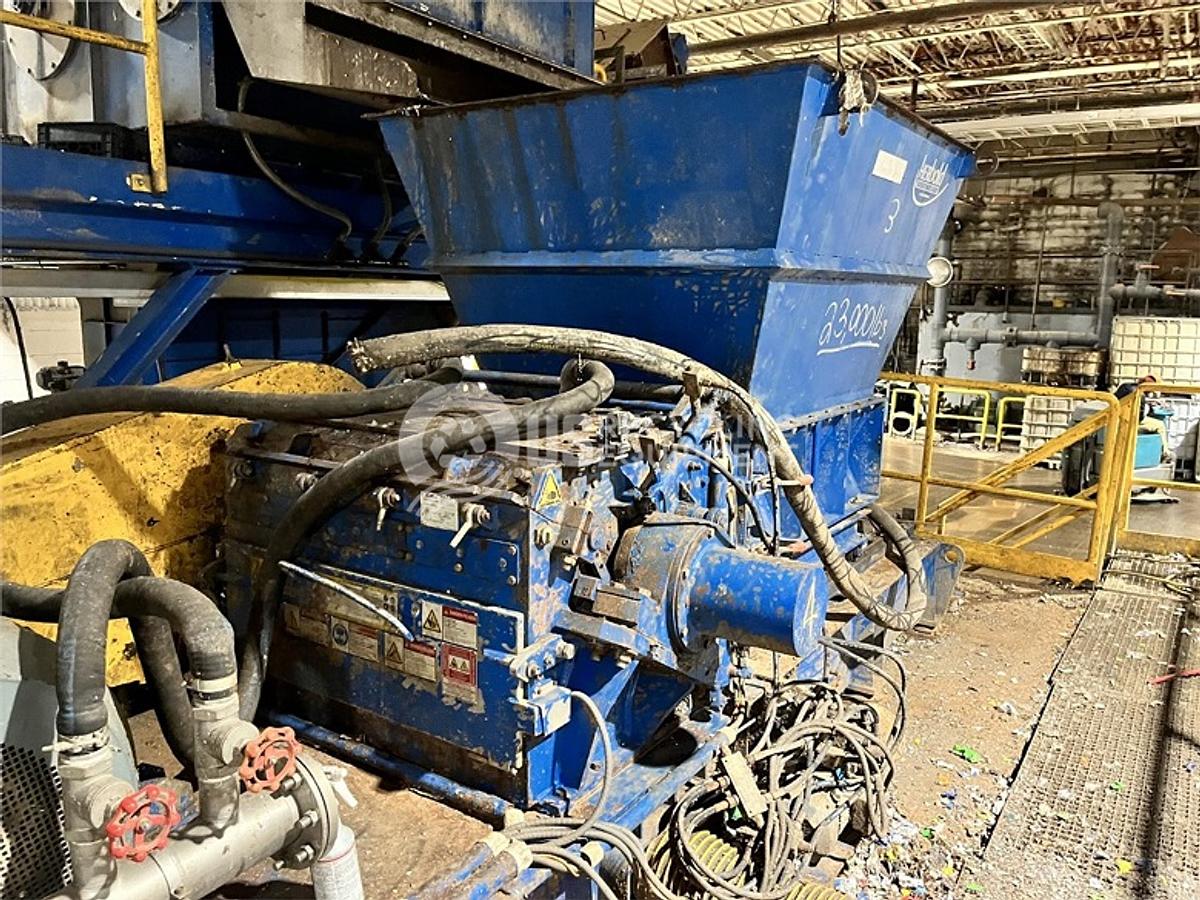

Herbold SML 60/100 F7-3 SB2 Wet Granulator, 7 Knife Open Rotor, 3 Bed Kives, 110KW(147HP), Horizontal Feeding Screw Powered By 3kW(5HP) Motors

Herbold FA 3000 Friction Washer, 300MM(118") Long X 500MM(19.7") Diameter, 18.5KW(25HP), 1,000 RPM Auger Speed

Herbold Sink/Float Tank, Model 4000/1800, 400MM(157") Long X 1800MM(70") Wide, 3 Paddle Rollers Driven By .25KW(.33HP Motors, Discharge Drum Driven By 3KW(5HP) Motor, Floating Material Conveyed To Friction Washer, Sinking Material Discharged Via Chain Scraper

Herbold FA 3000 Friction Washer, 300MM(118") Long X 500MM(19.7") Diameter, 18.5KW(25HP), 1,000 RPM Auger Speed

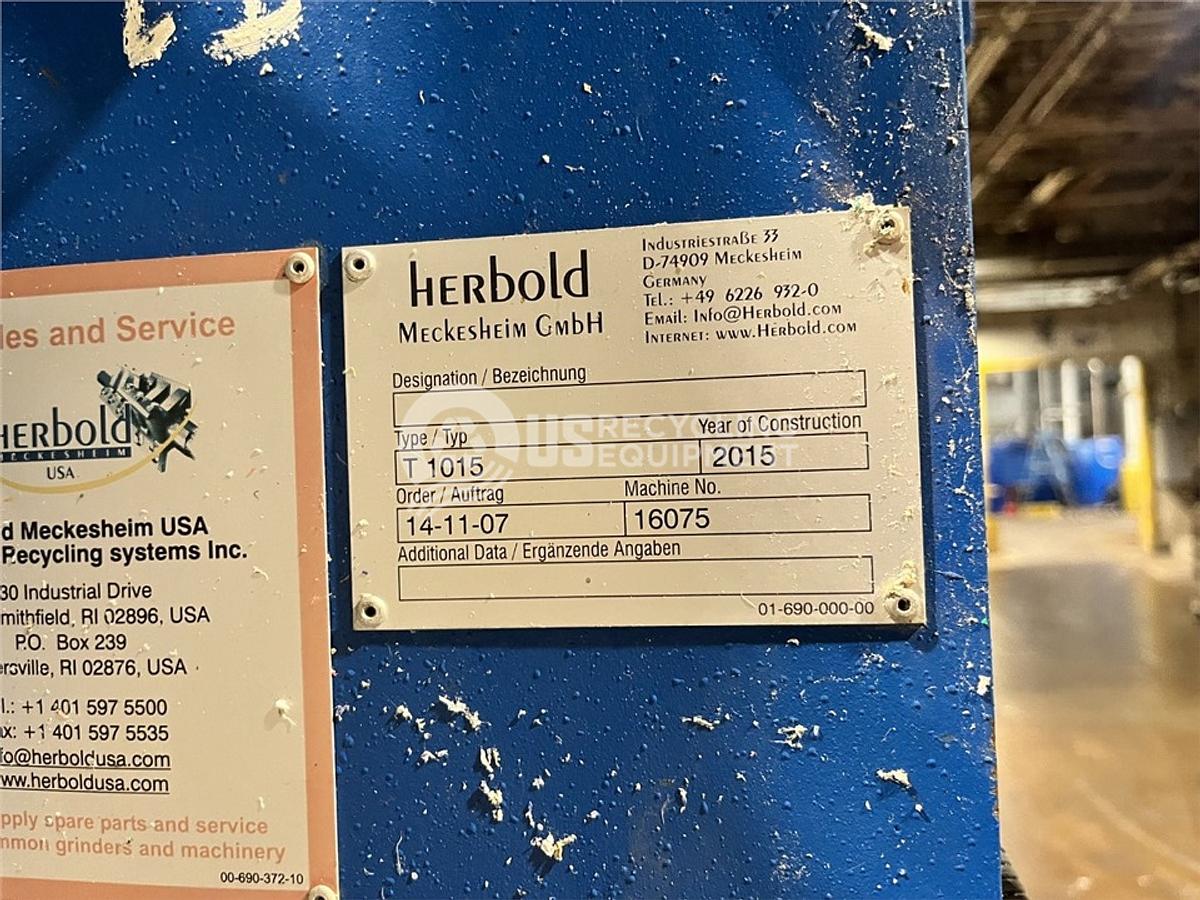

Herbold T 1015 Turbo Drier, 1000MM(40" Diameter Screen, 1450 MM(57" Length, 75 KW(100HP) Motor, 1,000 RPM Rotor Speed

Multiple Blowers For Material Transport

Air Separator For Fines, Dirt, Labels, .37KW(.5HP) Rotary Airlock, 630MM(25") x 212MM(8") Sifter Channel

All Dimensions & Specs Are Approximate

4,500 LBS/HR Based On Shredded Material Run Through 5.5" Screen

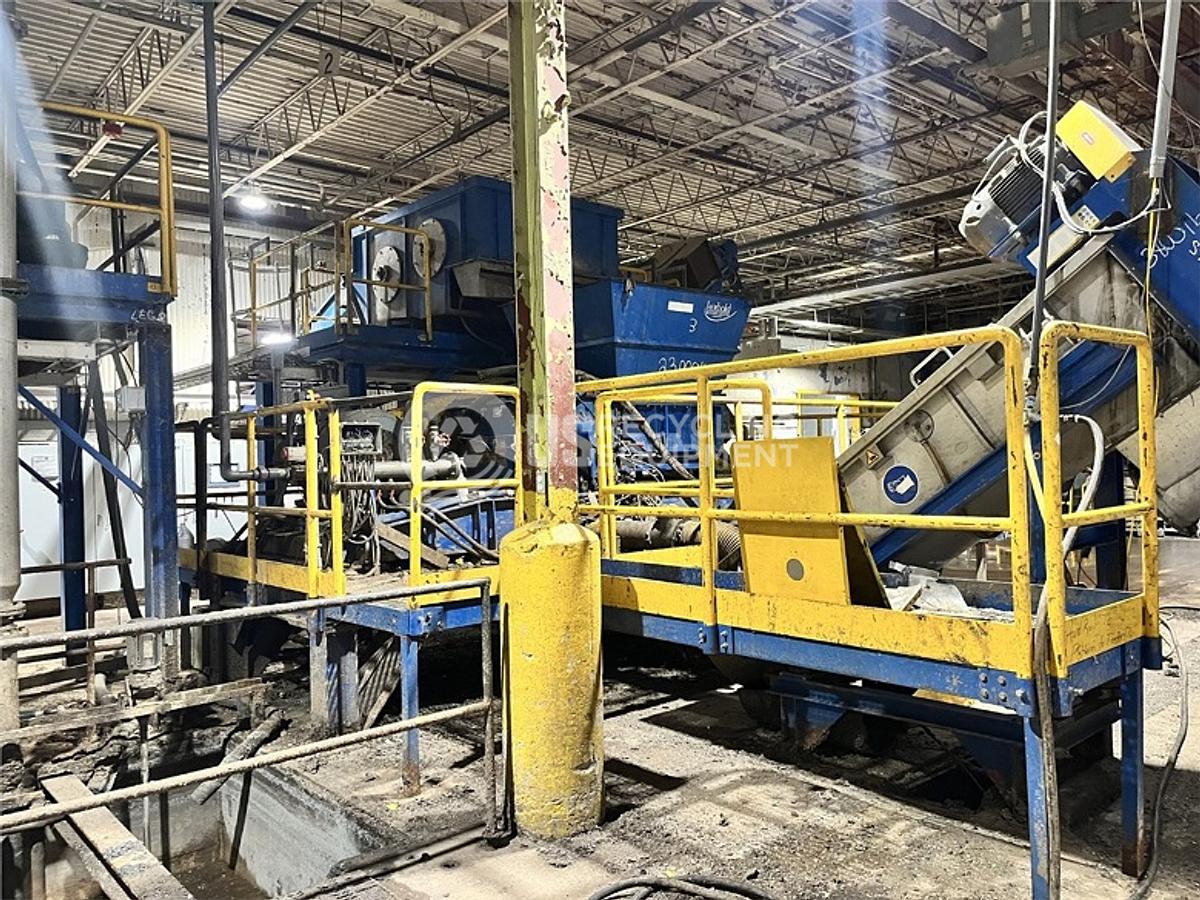

Several Maintenance Platforms, Staircases, Safety Railings

Shredder Available at Extra Cost

Can Convert to PET Wash line

Currently in Production
